Description
-

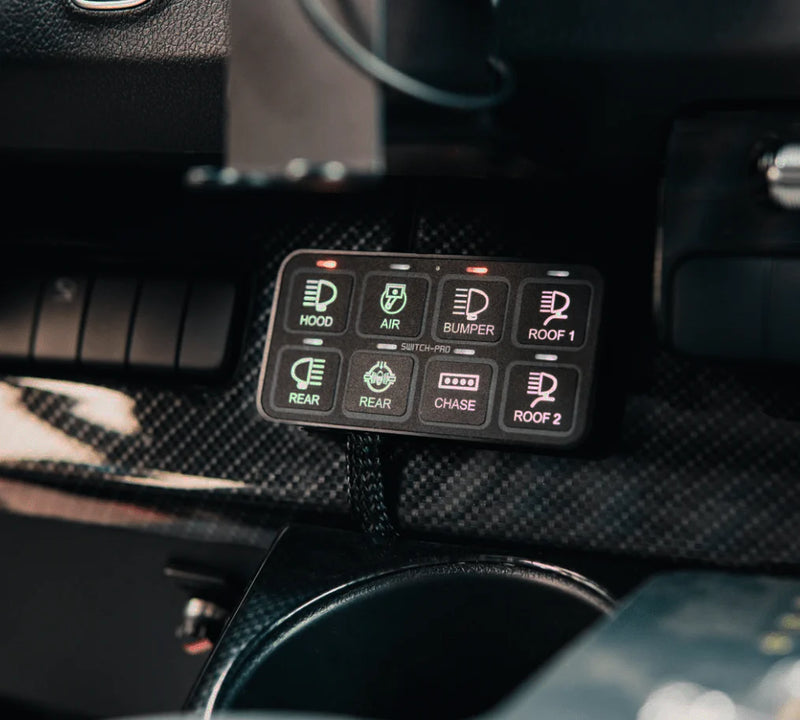

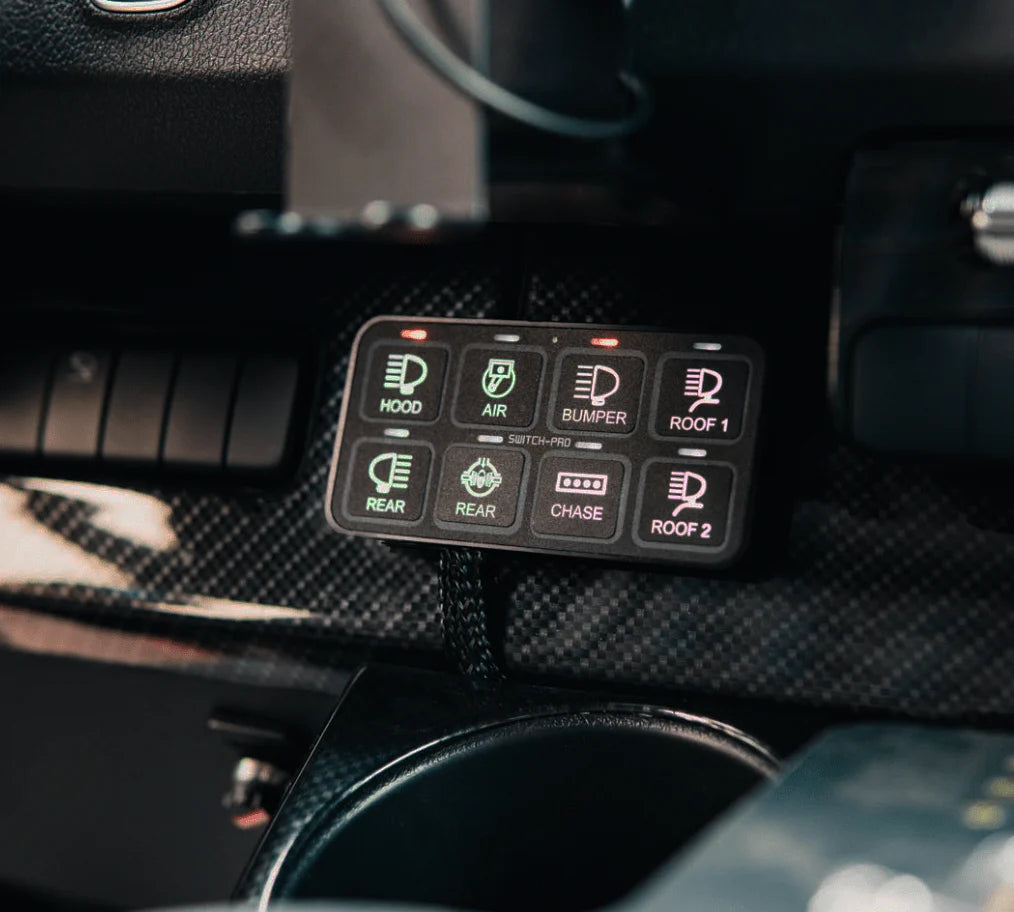

Switch Panel and Power Module - Solid State - NO FUSES to deal with!
- User programable ***Huge Feature!
-

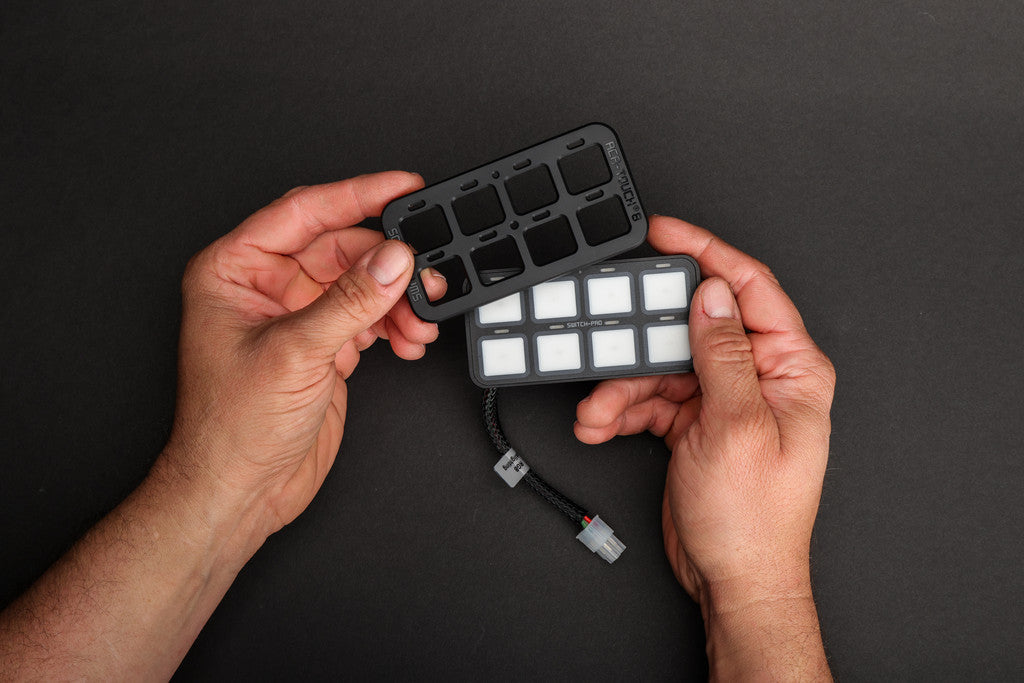

RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
-

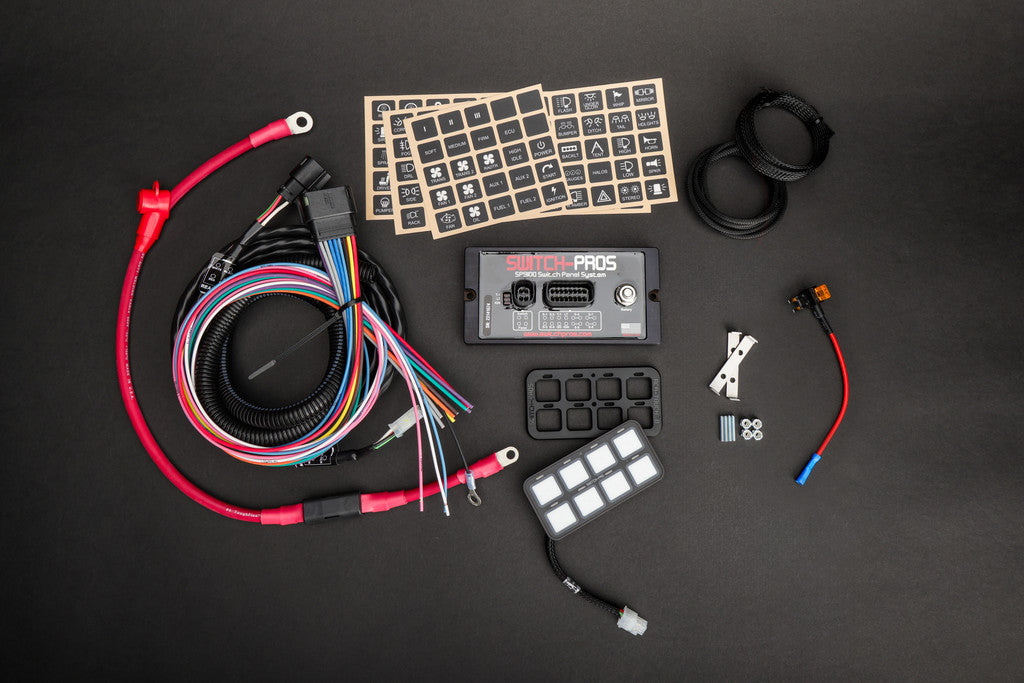

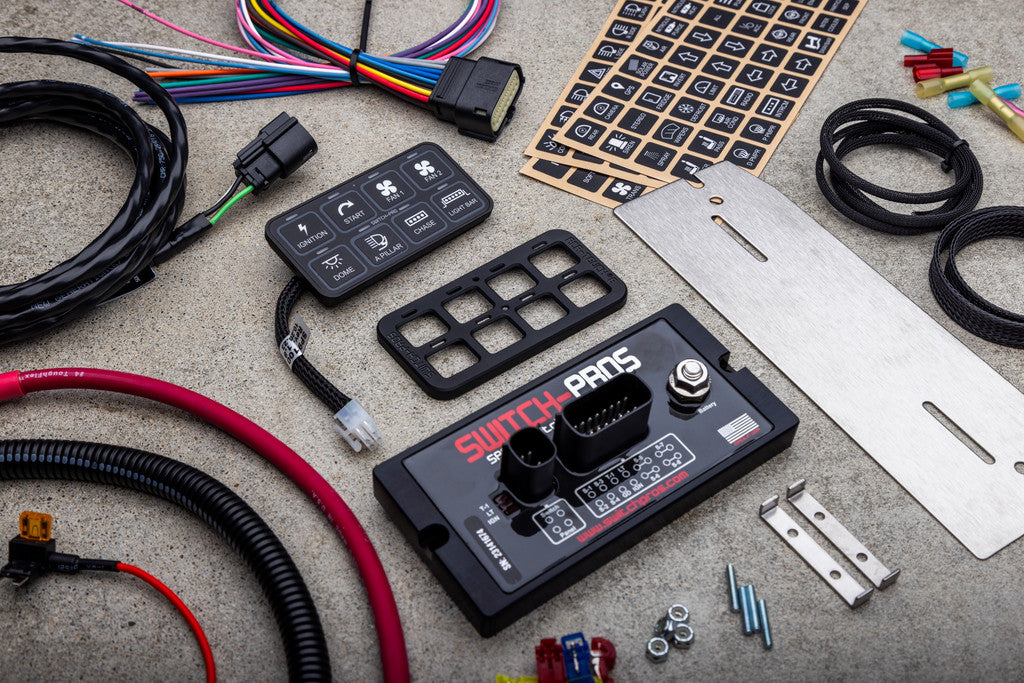

11’ of Communication Cable between Switch Panel and Power Module
-
Power Cable with 125A inline fuse
-
125 User Selectable Legends included (Horizontal orientation)
-
Installation brackets and hardware
-
16-pin color coded output harnes
Features
-
RGB Backlighting
-
Built-in Bluetooth module for use with free Switch-Pros App
-
Program and operate your panel from any device with access to the iOs or Google Play Store
-
Battery Voltage Readout on App screen
-
Orange LED switch indicators
-
LED Input Status Indicators for easy troubleshooting on power module
Specifications
-
125amp capacity with 8 outputs
-
8 Outputs: 4 rated @ 35A, 4 rated @ 20A
-
Adjustable Output Overcurrent Values
-
Switch Panel enclosure measures 4” L x 2” W x .375” H
-

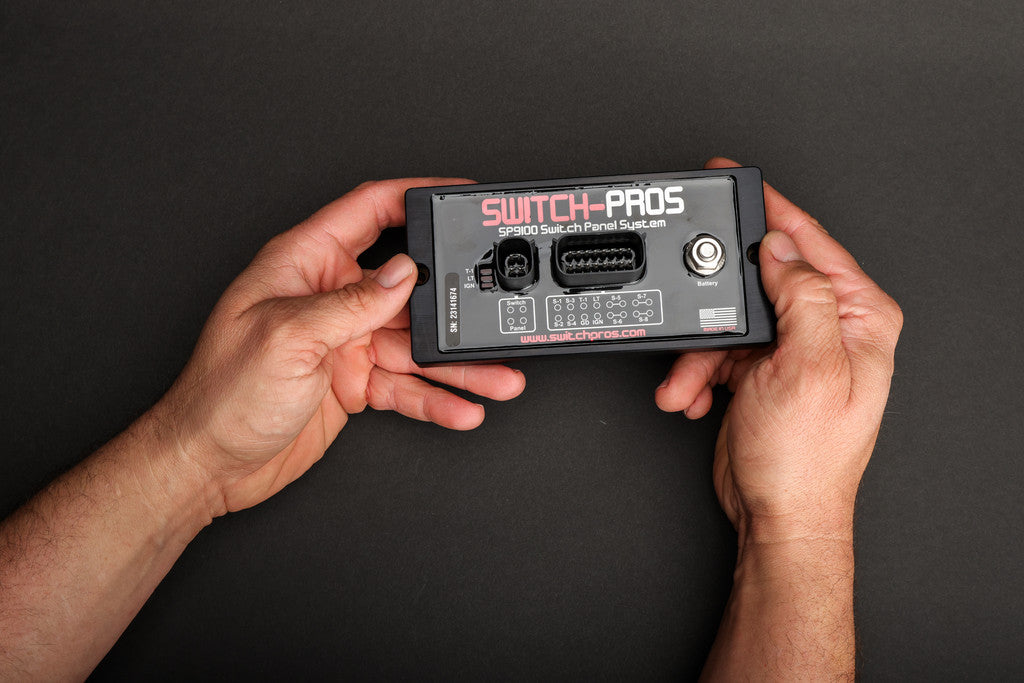

Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
-

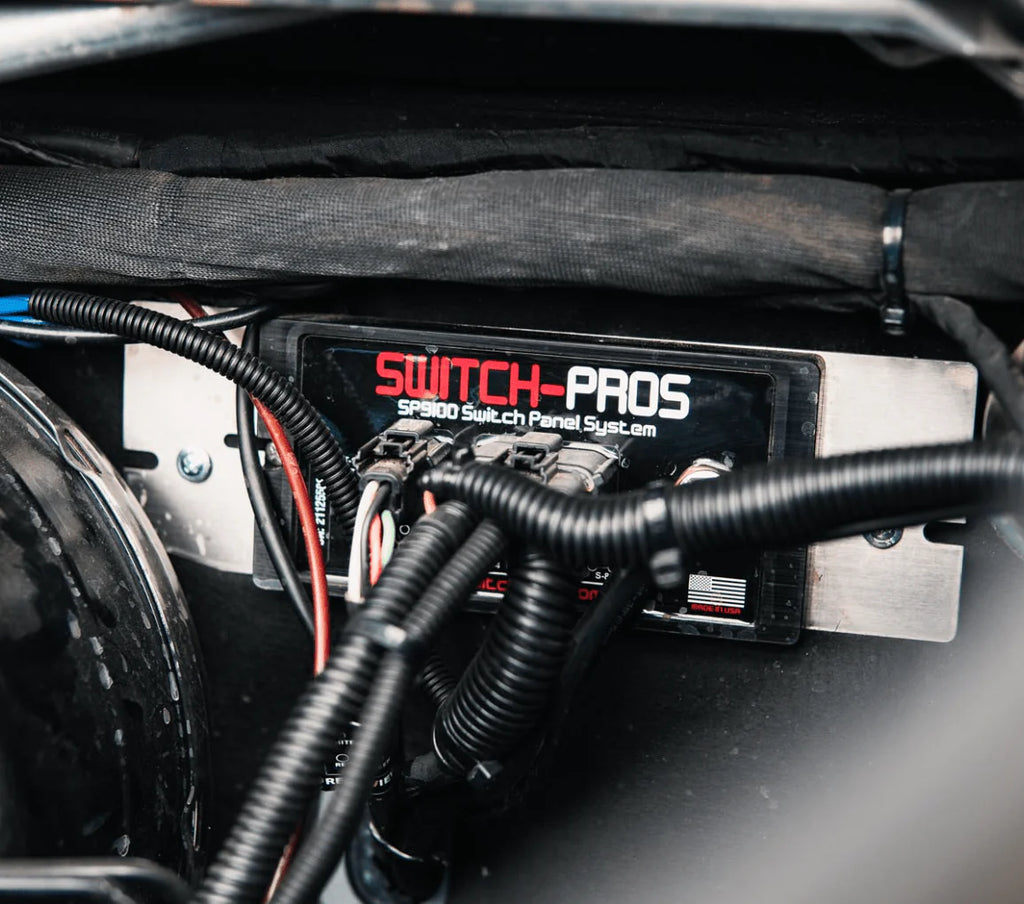

Power Module Under Hood rating 125°C to -40°C
-
Switch Panel and Power Module Waterproof rating of IP67
