Description

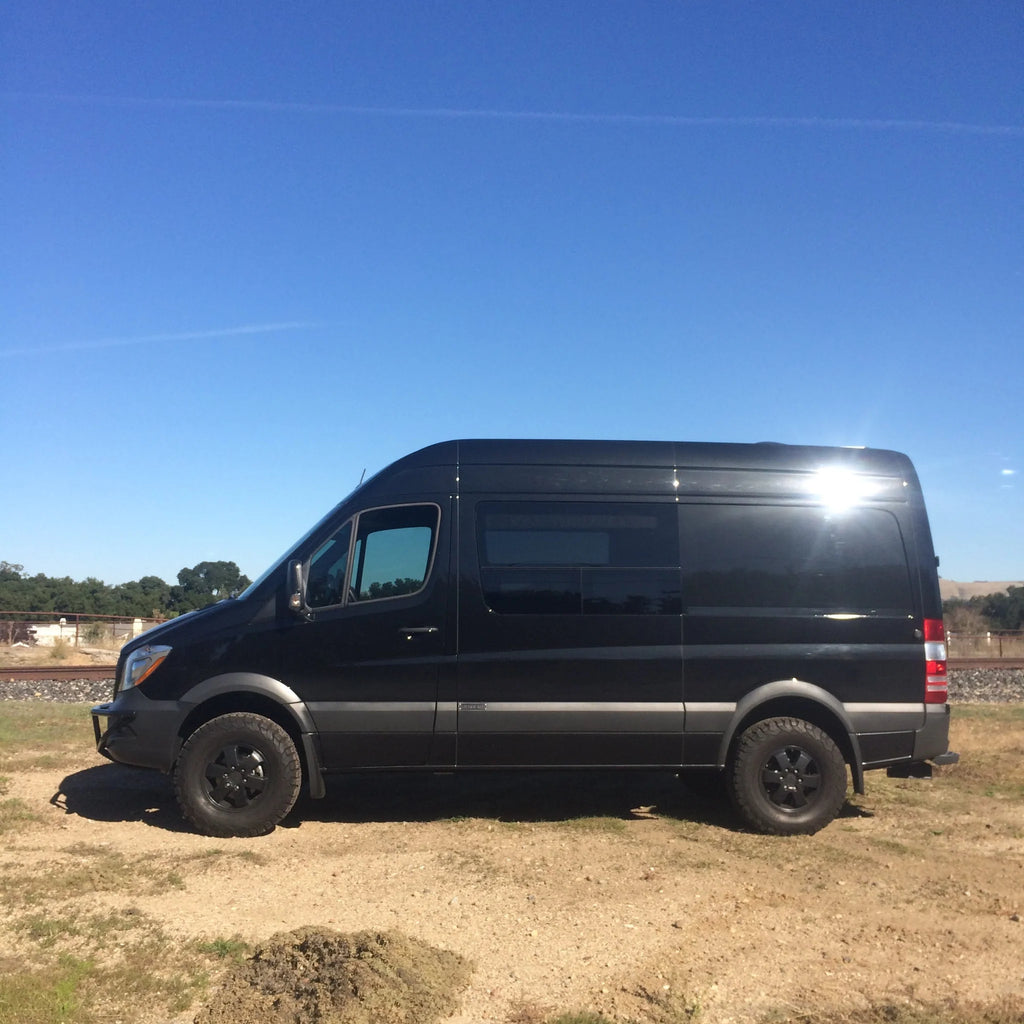

The Striker 2" lift kit gives your 2WD Sprinter the clearance it needs to take you farther on your next adventure. Our bolt-on suspension lift provides clearance for up to a 33" tire* allowing for higher ground clearance off-road helping to avoid obstacles on the trail. The Striker kit retains the stock vehicle suspension geometry, payload rating and ride quality so you can enjoy all the benefits of increased clearance without any adverse effects.
The lift block will retain your factory spring rate and ride quality, and pairs nicely with one of Van Compass' tuned shock upgrades for an increase in comfort, compliance and control. All Van Compass' kit components are constructed of high quality materials in the USA and come powder coated for durability and corrosion resistance.
*** Some 3500 Sprinters have factory rear lift blocks installed, the kit will not be compatible on those models. ***

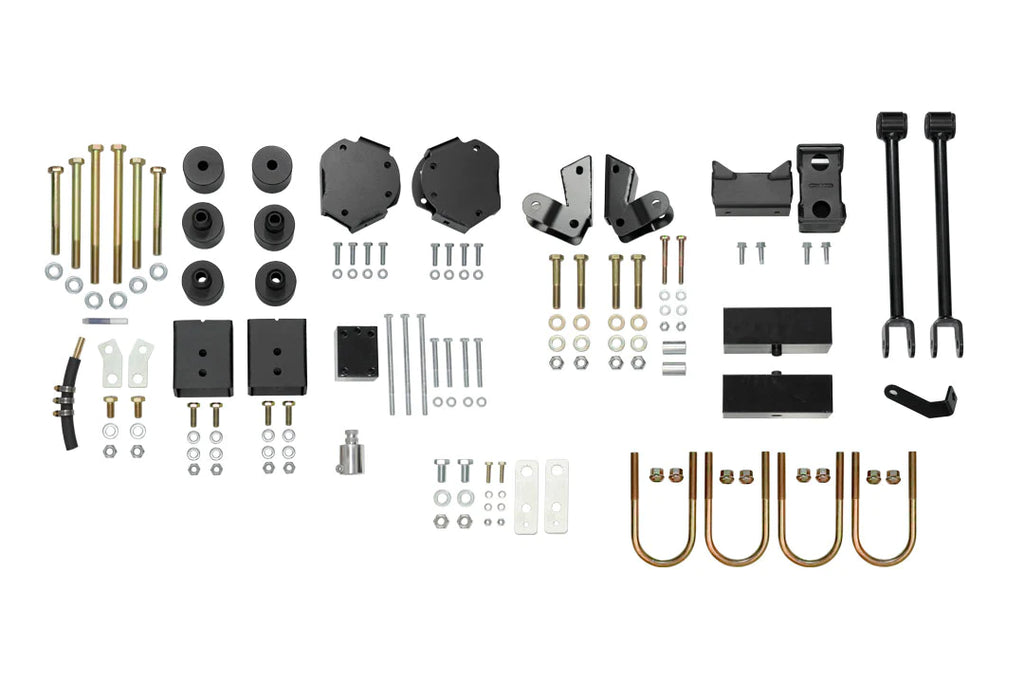

Included Components
- Front 2" strut spacers
- Front 2" subframe drop spacers
- Engine and transmission mount 2" lift spacers
- CNC Machined 2" steering shaft extension
- Low pressure power steering hose extension
- Front brake line relocation brackets
- Rear brake line relocation brackets
- Rear 2" lift block
- U-bolts with nuts
- Extended rear sway bar links (2500)
- Rear sway bar drop brackets (3500)
- Rear lower shock relocation brackets
- Rear bump stop drop brackets
- Wind assist or headlight levelling sensor bracket
- All necessary hardware and detailed instructions
NCV3 2500 Front Lift Installation Instructions
NCV3 2500 Rear Lift Installation Instructions
NCV3 3500 Front Lift Installation Instructions
NCV3 3500 Rear Lift Installation Instructions
Recommended Shop Labor Time: 12 Hours
Contact us at gear@nirvanaoutfitters.com for an installation quote at Nirvana HQ in Salmon Arm, BC
We have partner shops who will install in Calgary, Canmore & Vancouver
